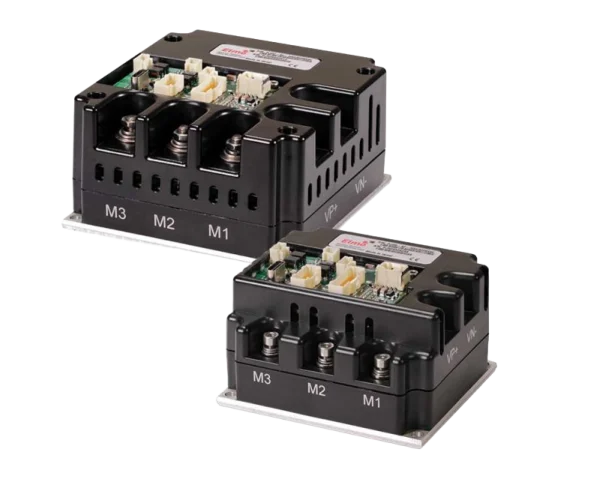

The Platinum Jori servo drives are high in power density, intelligent, and resilient. There are two models: Platinum Jori 30A and Platinum Jori 60A.
The Platinum Jori is an integrated solution delivering up to 20 kW and 40 kW of continuous power in compact packages (65.5 x 75.5 x 45.3 mm and 85.4 x 90.4 x 49.7 mm). These servo drives are equipped with a SiC-based power stage.
These advanced, high-power-density servo drives provide top performance, functional safety*, STO models, advanced networking, as well as a fully featured motion controller, local intelligence, and safe and regular IO options.
The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servos with enhanced functionality and ease of use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion control and utmost safety.
Platinum Jori Highlights
- SiC-based power stage
- Full Functional Safety & STO Models*
- CANopen
- EtherCAT
- Safe and Regular IO options
- S1/S2 – High Pressure options
* In certification process
Platinum Series Highlights
- World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
- Higher bandwidth, faster response, enhanced linearity and highest control dynamic ranges and resolutions
- Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
- Added feedback support: up to three simultaneously, or two absolute feedbacks
- High processing power with large memory resources for better control, enhanced processing, and real time recording
