The Compact One – Reliability in Narrow Spaces

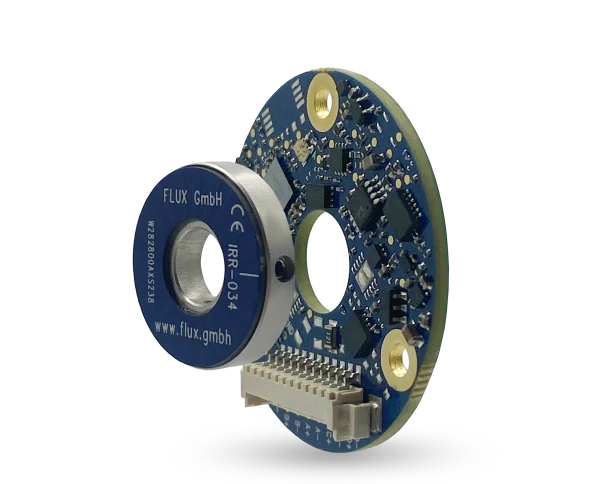

Using proprietary inductive measurements, FLUX provides an absolute encoder of the highest quality in the smallest possible size. Featuring an ultra-light weight and flat design, the INDUCTIVE Rotary Encoder is suitable for a wide range of applications.
Due to its immunity to magnetic and electromagnetic interference, this inductive encoder can be directly integrated into BLDCs or stepper motors.
Table of Specifications
IND-ROT | The COMPACT One
| MODEL | ENCODER STATOR OD / ID | ENCODER ROTOR OD / ID | THICKNESS | RESOLUTION | ACCURACY | MASS STATOR / ROTOR |
| IND-ROT-034 | 34 mm / 9 mm | 22 mm / 8 mm | 7.7 mm | 17 bits / rev. | ±0.050º | 3.5g / 5.5g |
| IND-ROT-036 | 36 mm / 11 mm | 24 mm / 10 mm | 7.7 mm | 17 bits / rev. | ±0.050º | 4g / 5.5g |
| IND-ROT-045 | 44 mm / 17 mm | 32 mm / 15 mm | 7.7 mm | 18 bits / rev. | ±0.040º | 5g / 5.5g |
| IND-ROT-055 | 55 mm / 26 mm | 39 mm / 25 mm | 5.8 mm | 19 bits / rev. | ±0.025º / ±90“ | 7g / 7g |
| IND-ROT-069 | 69 mm / 40 mm | 53 mm / 39 mm | 5.8 mm | 19 bits / rev. | ±0.020º / ±75“ | 9g / 12g |
| IND-ROT-080 | 80 mm / 51 mm | 64 mm / 50 mm | 5.8 mm | 20 bits / rev. | ±0.018º / ±65“ | 10g / 14g |
| IND-ROT-096 | 96 mm / 67 mm | 80 mm / 66 mm | 5.8 mm | 20 bits / rev. | ±0.012º / ±45“ | 12g / 18g |
